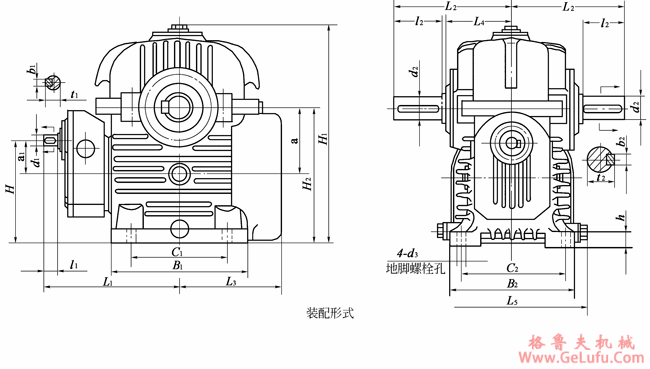

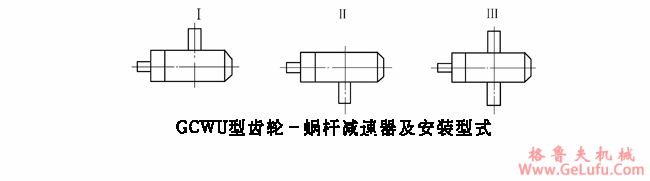

GCWU100-GCWU500、型低速级蜗杆在蜗轮之下的齿轮-蜗杆减速器的装配形式与主要尺寸
QQ：47447450
gelufu.com
格鲁夫机械
|
型号尺寸 |
a |
a1 |
B1 |
B2 |
C1 |
C2 |
i=35.5～56、100、112 |
i=63～90、125～180 | ||||||||
|
d1 |
l1 |
b1 |
t1 |
L1 |
d1 |
l1 |
b1 |
t1 |
L1 | |||||||
|
GCWU100 |
100 |
63 |
225 |
240 |
190 |
200 |
22j6 |
36 |
6 |
24.5 |
255 |
19j6 |
28 |
6 |
21.5 |
247 |
|
GCWU125 |
125 |
63 |
260 |
250 |
226 |
205 |
22j6 |
36 |
6 |
24.5 |
273 |
19j6 |
28 |
6 |
21.5 |
265 |
|
GCWU160 |
160 |
80 |
325 |
300 |
230 |
250 |
28j6 |
42 |
8 |
31 |
329 |
24j6 |
36 |
8 |
27 |
323 |
|
GCWU200 |
200 |
100 |
400 |
350 |
280 |
300 |
42k6 |
82 |
12 |
45 |
443 |
28j6 |
42 |
8 |
31 |
403 |
|
GCWU250 |
250 |
125 |
510 |
410 |
370 |
350 |
48k6 |
82 |
14 |
51.5 |
538 |
38k6 |
58 |
10 |
41 |
514 |
|
GCWU315 |
315 |
160 |
640 |
530 |
470 |
445 |
65m6 |
105 |
18 |
69 |
635 |
48k6 |
82 |
14 |
51.5 |
612 |
|
GCWU355 |
355 |
160 |
730 |
580 |
540 |
490 |
65m6 |
105 |
18 |
69 |
680 |
48k6 |
82 |
14 |
51.5 |
657 |
|
GCWU400 |
400 |
200 |
790 |
620 |
620 |
530 |
80m6 |
130 |
22 |
85 |
785 |
60m6 |
105 |
18 |
64 |
760 |
|
GCWU450 |
450 |
200 |
885 |
680 |
700 |
580 |
80m6 |
130 |
22 |
85 |
838 |
60m6 |
105 |
18 |
64 |
813 |
|
GCWU500 |
500 |
250 |
1015 |
750 |
760 |
640 |
100m6 |
165 |
28 |
106 |
995 |
80m6 |
130 |
22 |
85 |
960 |
|
型号尺寸 |
i=200～315 |
d2 |
l2 |
b2 |
t2 |
L2 |
L3 |
L4 |
L5 |
h |
H |
H1 | ||||
|
d1 |
l1 |
b1 |
t1 |
L1 | ||||||||||||
|
GCWU100 |
14j6 |
25 |
5 |
16 |
244 |
48k6 |
82 |
14 |
51.5 |
212 |
180 |
121 |
139 |
25 |
175 |
340 |
|
GCWU125 |
14j6 |
25 |
5 |
16 |
262 |
55m6 |
82 |
16 |
59 |
222 |
202 |
133 |
147 |
30 |
188 |
408 |
|
GCWU160 |
19j6 |
28 |
6 |
21.5 |
315 |
65m6 |
105 |
18 |
69 |
270 |
245 |
156 |
172 |
35 |
240 |
510 |
|
GCWU200 |
22j6 |
36 |
6 |
24.5 |
397 |
88m6 |
130 |
22 |
85 |
325 |
295 |
180 |
197 |
40 |
300 |
650 |
|
GCWU250 |
28j6 |
42 |
8 |
31 |
498 |
100m6 |
165 |
28 |
106 |
385 |
360 |
209 |
228 |
45 |
350 |
785 |
|
GCWU315 |
38k6 |
58 |
10 |
41 |
588 |
120m6 |
165 |
32 |
127 |
420 |
430 |
242 |
289 |
50 |
440 |
980 |
|
GCWU355 |
38k6 |
58 |
10 |
41 |
633 |
130m6 |
200 |
32 |
137 |
470 |
480 |
255 |
315 |
55 |
460 |
1085 |
|
GCWU400 |
48k6 |
82 |
14 |
51.5 |
737 |
150m6 |
200 |
36 |
158 |
490 |
515 |
277 |
335 |
60 |
515 |
1175 |
|
GCWU450 |
48k6 |
82 |
14 |
51.5 |
790 |
170m6 |
240 |
40 |
179 |
560 |
575 |
299 |
367 |
65 |
555 |
1310 |
|
GCWU500 |
60m6 |
105 |
18 |
64 |
935 |
190m6 |
280 |
45 |
200 |
640 |
655 |
343 |
403 |
80 |
650 |
1450 |
|
型号尺寸 |
H2 |
d3 |
质量m/kg |
|
GCWU100 |
212 |
14.5 |
69 |
|
GCWU125 |
250 |
18.5 |
101 |
|
GCWU160 |
320 |
18.5 |
160 |
|
GCWU200 |
400 |
24 |
283 |
|
GCWU250 |
475 |
28 |
425 |
|
GCWU315 |
595 |
35 |
750 |
|
GCWU355 |
655 |
35 |
960 |
|
GCWU400 |
715 |
35 |
1300 |
|
GCWU450 |
805 |
42 |
1760 |
|
GCWU500 |
900 |
42 |
2530 |
