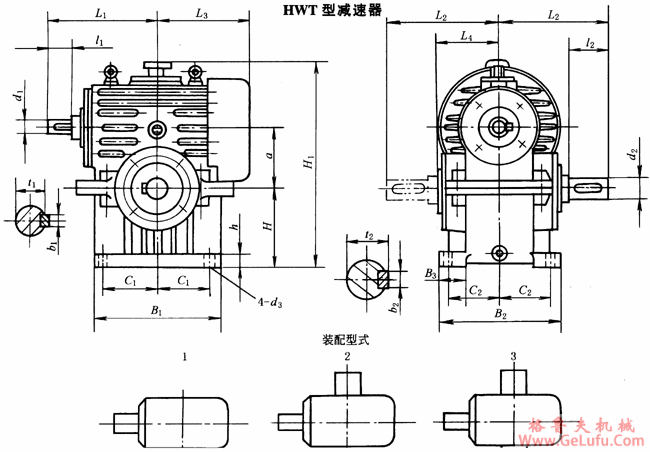

HWT型减速器外形、安装尺寸及装配型式JB/T7936―1999
QQ：47447450
mail:china@gelufu.com
|
型 号 |
a |
B1 |
B2 |
B3 |
C1 |
C2 |
H |
d1 |
l1 |
b1 |
t1 |
L1 |
|
HWT100 |
100 |
250 |
220 |
50 |
100 |
90 |
140 |
28js6 |
60 |
8 |
31 |
220 |
|
HWT125 |
125 |
280 |
260 |
60 |
115 |
105 |
160 |
35k6 |
80 |
10 |
38 |
260 |
|
HWT160 |
160 |
380 |
310 |
70 |
155 |
130 |
200 |
45k6 |
110 |
14 |
48.5 |
340 |
|
HWT200 |
200 |
450 |
360 |
80 |
185 |
150 |
250 |
55m6 |
110 |
16 |
59 |
380 |
|
HWT250 |
250 |
540 |
430 |
100 |
225 |
180 |
280 |
65m6 |
140 |
18 |
69 |
460 |
|
HWT280 |
280 |
640 |
500 |
110 |
270 |
210 |
315 |
75m6 |
140 |
20 |
79.5 |
530 |
|
HWT315 |
315 |
700 |
530 |
120 |
280 |
225 |
355 |
80m6 |
170 |
22 |
85 |
590 |
|
HWT355 |
355 |
750 |
560 |
130 |
300 |
245 |
400 |
85m6 |
170 |
22 |
90 |
610 |
|
HWT400 |
400 |
840 |
620 |
160 |
315 |
260 |
450 |
95m6 |
170 |
25 |
100 |
660 |
|
HWT450 |
450 |
930 |
700 |
190 |
355 |
300 |
500 |
100m6 |
210 |
28 |
106 |
740 |
|
HWT500 |
500 |
1020 |
760 |
200 |
400 |
320 |
560 |
110m6 |
210 |
28 |
116 |
790 |
|
型号 |
d2 |
l2 |
b2 |
t2 |
L2 |
L3 |
L4 |
H1 |
h |
d3 |
油量/L |
重量/kg |
|
HWT100 |
50k6 |
82 |
14 |
53.5 |
220 |
220 |
120 |
374 |
25 |
16 |
7 |
69 |
|
HWT125 |
60m6 |
82 |
18 |
64 |
240 |
260 |
142 |
430 |
30 |
20 |
9 |
129 |
|
HWT160 |
75m6 |
105 |
20 |
79.5 |
310 |
320 |
177 |
530 |
35 |
24 |
18 |
175 |
|
HWT200 |
90m6 |
130 |
25 |
95 |
350 |
380 |
192 |
640 |
40 |
24 |
38 |
290 |
|
HWT250 |
110m6 |
165 |
28 |
116 |
430 |
440 |
230 |
765 |
45 |
28 |
55 |
490 |
|
HWT280 |
120m6 |
165 |
32 |
127 |
470 |
530 |
255 |
855 |
50 |
35 |
71 |
750 |
|
HWT315 |
130m6 |
200 |
32 |
137 |
500 |
555 |
260 |
930 |
55 |
35 |
95 |
1030 |
|
HWT355 |
140m6 |
200 |
36 |
148 |
530 |
590 |
300 |
1040 |
60 |
35 |
126 |
1640 |
|
HWT400 |
150m6 |
200 |
36 |
158 |
560 |
655 |
310 |
1225 |
70 |
42 |
170 |
2170 |
|
HWT450 |
170m6 |
240 |
40 |
179 |
640 |
705 |
360 |
1345 |
75 |
42 |
220 |
2690 |
|
HWT500 |
180m6 |
240 |
45 |
190 |
670 |
775 |
380 |
1490 |
80 |
42 |
275 |
3410 |
