ADC系列摆线减速机尺寸图表ANHM-9095～9115TB
www.gelufu.com
WX:grove_company
|

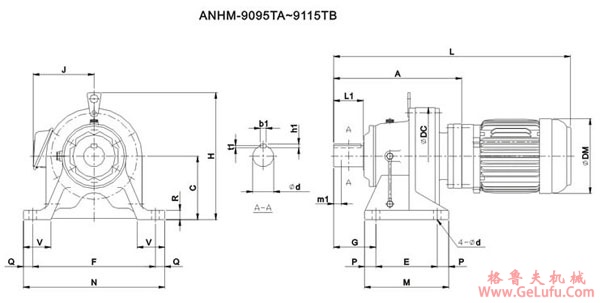

ANHM-9095TA～9115TB尺寸图表 | ||||||||||||||||||
|
ANHM |
A |
C |
DC |
E |
F |
G |
M |
N |
P |
Q |
R |
V |
d |
输出轴尺寸 | ||||
|
d1 |
L1 |
b1 |
h1 |
t1 | ||||||||||||||
|
9095TA |
190 |
100 |
150 |
90 |
150 |
60 |
134 |
184 |
17 |
17 |
12 |
41 |
11 |
28 |
35 |
8 |
7 |
4 |
|
9105TA |
204 |
100 |
150 |
90 |
150 |
60 |
134 |
184 |
17 |
17 |
12 |
41 |
11 |
28 |
35 |
8 |
7 |
4 |
|
9115TA |
240 |
120 |
204 |
115 |
190 |
82 |
159 |
234 |
22 |
22 |
15 |
56 |
14 |
38 |
55 |
10 |
8 |
5 |
|
9115TB |
252 |
120 |
204 |
115 |
190 |
82 |
159 |
234 |
22 |
22 |
15 |
56 |
14 |
38 |
55 |
10 |
8 |
5 |
格鲁夫减速机
|
型号 |
电机 |
L |
J |
DM |
H |
W（KG） | ||
|
KW |
HP |
极数 | ||||||
|
ANHM02-9095TA-Ratio |
0.2 |
1/4 |
4 |
410 |
122 |
144 |
207 |
22 |
|
ANHM02-9105TA-Ratio |
0.2 |
1/4 |
4 |
425 |
122 |
144 |
207 |
24 |
|
ANHM05-9105TA-Ratio |
0.4 |
1/2 |
4 |
445 |
133 |
162 |
207 |
27 |
|
ANHM02-9115TA-Ratio |
0.2 |
1/4 |
4 |
460 |
122 |
144 |
257 |
35 |
|
ANHM05-9115TA-Ratio |
0.4 |
1/2 |
4 |
480 |
133 |
162 |
257 |
38 |
|
ANHM02-9115TA-Ratio |
0.2 |
1/4 |
4 |
472 |
122 |
144 |
257 |
40 |
|
ANHM05-9115TB-Ratio |
0.4 |
1/2 |
4 |
494 |
133 |
162 |
257 |
43 |
|
ANHM1-9115TB-Ratio |
0.75 |
1 |
4 |
494 |
138 |
177 |
257 |
45 |
