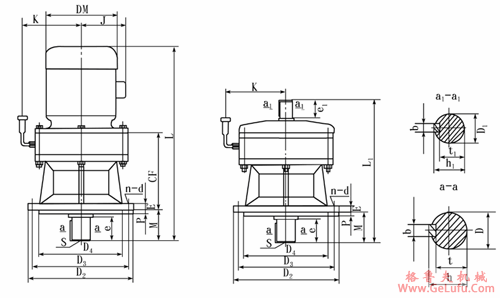

BL系列一机部标准行星摆线针轮减速机外形及安装尺寸
WX:grove_company
格鲁夫齿轮箱
|
系列 |
机座号 |
外形尺寸 |
安装尺寸 |
输出轴尺寸 |
输入轴尺寸 | ||||||||||||||||
|
D2 |
L1 |
CF |
D3 |
D4 |
P |
E |
M |
n-d |
D |
e |
b |
h |
s |
t |
D1 |
e1 |
b1 |
h1 |
t1 | ||
|
B一
机部 |
12 |
190 |
215 |
165 |
160 |
140 |
3 |
12 |
40 |
4-11 |
30 |
35 |
8 |
33 |
M8 |
26 |
15 |
22 |
5 |
17 |
12 |
|
15 |
230 |
282 |
216 |
200 |
170 |
4 |
16 |
65 |
6-13 |
35 |
45 |
10 |
38 |
M8 |
30 |
18 |
28 |
6 |
21 |
14.5 | |
|
18 |
260 |
352 |
276 |
230 |
200 |
4 |
20 |
89 |
6-13 |
45 |
60 |
14 |
49 |
M8 |
39.5 |
22 |
36 |
6 |
25 |
18.5 | |
|
22 |
340 |
422 |
316 |
310 |
270 |
4 |
22 |
89 |
6-13 |
55 |
75 |
16 |
59 |
M10 |
49 |
30 |
45 |
8 |
33 |
26 | |
|
27 |
400 |
490 |
383 |
360 |
316 |
5 |
26 |
114 |
8-18 |
70 |
95 |
20 |
75 |
M12 |
62.5 |
35 |
54 |
10 |
38 |
30 | |
|
33 |
490 |
629 |
464 |
450 |
400 |
6 |
30 |
140 |
12-22 |
90 |
110 |
25 |
95 |
M16 |
81 |
45 |
82 |
14 |
49 |
39.5 | |
|
39 |
580 |
736 |
556 |
520 |
455 |
8 |
35 |
177 |
12-22 |
100 |
152 |
28 |
106 |
M20 |
90 |
50 |
82 |
14 |
54 |
44.5 | |
|
45 |
650 |
783 |
594 |
590 |
520 |
10 |
40 |
180 |
12-26 |
110 |
155 |
28 |
116 |
M24 |
100 |
55 |
82 |
16 |
59 |
49 | |
|
55 |
880 |
966 |
733 |
800 |
680 |
10 |
45 |
215 |
12-32 |
130 |
200 |
32 |
138 |
M30 |
119 |
70 |
105 |
20 |
75 |
62.5 | |
|
65 |
1000 |
1121 |
1152 |
920 |
760 |
10 |
60 |
255 |
12-32 |
160 |
240 |
40 |
171 |
M42 |
147 |
80 |
130 |
24 |
87 |
71 | |
